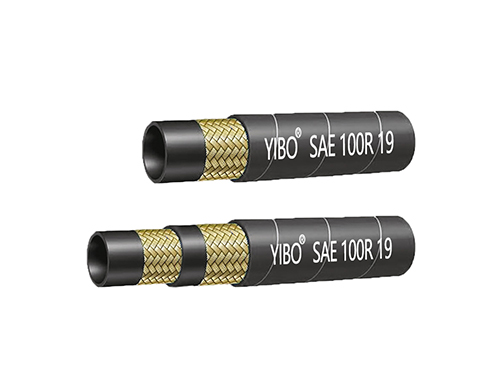

SAE 100 R19

Compact,28mpa Maximum Working Pressure Wire Braid Hydraulic Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:1 or 2 High Tensile Steel Wire Braids
  • Cover:Black Smooth Or Black Corrugate, Oil, Weather And Abrasion Resistant Synthetic..
  • Safety factor: 4:1
Request A Quote

Product Application

Transmit petroleum base hydraulic oil or water

Product Attributes

  • Tube:Oil resistant synthetic rubber
  • Reinforcement:1 or 2 High tensile steel wire braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1
  • Application:Transmit petroleum base hydraulic oil or water
  • Temperature Range:-40℃~+100℃(-40ºF~+212ºF)

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Cover thickness Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Max Max Min Max MPa MPa MPa mm kg/m
R19-03 5.0 3/16 4.6 5.4 10.8 12.7 0.8 1.5 28 56 112 45
R19-04 6.3 1/4 6.2 7.0 12.4 14.4 0.8 1.5 28 56 112 50 0.17
R19-05 8.0 5/16 7.7 8.5 14.2 16.3 0.8 1.5 28 56 112 55 0.21
R19-06 10.0 3/8 9.3 10.1 16.0 18.0 0.8 1.5 28 56 112 65 0.25
R19-08 12.5 1/2 12.3 13.5 20.4 22.6 0.8 1.5 28 56 112 90 0.47
R19-10 16.0 5/8 15.5 16.7 25.9 27.5 0.8 1.5 28 56 112 100 0.59
R19-12 19.0 3/4 18.6 19.8 29.7 32.5 0.8 1.5 28 56 112 120 0.78
R19-16 25.0 1 25.0 26.4 37.0 39.4 0.8 1.6 28 56 112 150 1.46
