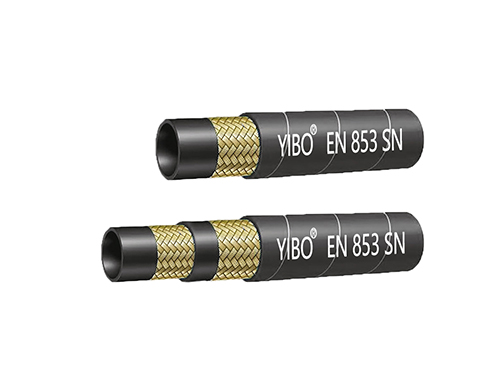

SAE 100R AT/EN 853 SN

Wire Braid Hydraulic Rubber Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:1 or 2 High Tensile Steel Wire Braids
  • Cover:Black Smooth Or Black Corrugate, Oil, Weather And Abrasion Resistant Synthetic rubber
  • Safety factor: 4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Petroleum base hydraulic oil or water

Product Attributes

  • Tube: Oil resistant synthetic rubber
  • Reinforcement: 1 or 2 High tensile steel wire braids
  • Cover: Black smooth or black corrugate , oil, weather and abrasion resistant synthetic rubber
  • Application: Petroleum base hydraulic oil or water
  • Safety factor: 4:1
  • Temperature range:-40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Cover thickness Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Max Min Max MPa MPa MPa mm kg/m
1AT/SN-03 5.0 3/16 4.6 5.4 8.9 10.1 12.5 0.8 1.5 25.0 50.0 100 90 0.19
1AT/SN-04 6.0 1/4 6.2 7.0 10.6 11.7 14.1 0.8 1.5 22.5 45.0 90 100 0.21
1AT/SN-05 8.0 5/16 7.7 8.5 12.1 13.3 15.7 0.8 1.5 21.5 43.0 86 115 0.27
1AT/SN-06 10.0 3/8 9.3 10.1 14.5 15.7 18.1 0.8 1.5 18.0 36.0 72 128 0.35
1AT/SN-08 12.5 1/2 12.3 13.5 17.5 19.0 21.5 0.8 1.5 16.0 32.0 64 180 0.45
1AT/SN-10 16.0 5/8 15.5 16.7 20.6 22.2 24.7 0.8 1.5 13.0 26.0 52 205 0.51
1AT/SN-12 19.0 3/4 18.6 19.8 24.6 26.2 28.6 0.8 1.5 10.5 21.0 42 240 0.58
1AT/SN-16 25.0 1 25.0 26.4 32.5 34.1 36.6 0.8 1.5 8.7 17.5 35 300 0.98
1AT/SN-20 31.5 1-1/4 31.4 33.0 39.3 41.7 44.8 1.0 2.0 6.2 12.5 25 420 1.17
1AT/SN-24 38.0 1-1/2 37.7 39.3 45.6 48.0 52.0 1.3 2.5 5.0 10.0 20 500 1.35
1AT/SN-32 51.0 2 50.4 52.0 58.7 61.9 65.9 1.3 2.5 4.0 8.0 16 630 2.00
2AT/SN-03 5.0 3/16 4.6 5.4 10.6 11.7 14.1 0.8 1.5 41.5 83.0 165 90 0.31
2AT/SN-04 6.0 1/4 6.2 7.0 12.1 13.3 15.7 0.8 1.5 40.0 80.0 160 100 0.35
2AT/SN-05 8.0 5/16 7.7 8.5 13.7 14.9 17.3 0.8 1.5 35.0 70.0 140 115 0.40
2AT/SN-06 10.0 3/8 9.3 10.1 16.1 17.3 19.7 0.8 1.5 33.0 66.0 132 130 0.49
2AT/SN-08 12.5 1/2 12.3 13.5 19.0 20.6 23.1 0.8 1.5 27.5 55.0 110 180 0.60
2AT/SN-10 16.0 5/8 15.5 16.7 22.2 23.8 26.3 0.8 1.5 25.0 50.0 100 200 0.75
2AT/SN-12 19.0 3/4 18.6 19.8 26.2 27.8 30.2 0.8 1.5 21.5 43.0 86 240 0.95
2AT/SN-16 25.0 1 25.0 26.4 34.1 35.7 38.9 0.8 1.5 16.5 33.0 66 300 1.30
2AT/SN-20 31.5 1-1/4 31.4 33.0 43.2 45.6 49.6 1.0 2.0 12.5 25.0 50 420 1.90
2AT/SN-24 38.0 1-1/2 37.7 39.3 49.6 52.0 56.0 1.3 2.5 9.0 18.0 36 500 1.95
2AT/SN-32 51.0 2 50.4 52.0 62.3 64.7 68.6 1.3 2.5 8.0 16.0 32 630 3.42
