SAE 100 R16

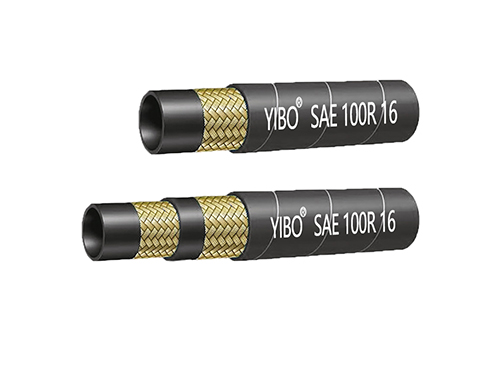

SAE 100 R16 Compact High Pressure Hydraulic Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:1 or 2 High Tensile Steel Wire Braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Transmit petroleum base hydraulic oil or water

Product Attributes

  • Tube:Oil resistant synthetic rubber
  • Reinforcement:1 or 2 High tensile steel wire braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1
  • Application:Transmit petroleum base hydraulic oil or water
  • Temperature Range:-40℃～+100℃（-40ºF～+212ºF）

Product Parameters

TPYE SIZE SIZE I.D W.D O.D Cover thickness Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Max Max Min Max MPa MPa MPa mm kg/m
R16-04 6 1/4 6.2 7.0 12.3 14.5 0.8 1.5 40.0 80 160 50 0.30
R16-05 8 5/16 7.7 8.5 13.3 15.7 0.8 1.5 35.0 70 140 55 0.34
R16-06 10 3/8 9.3 10.1 15.9 18.8 0.8 1.5 33.0 66 132 65 0.42
R16-08 12.5 1/2 12.3 13.5 19.0 22.0 0.8 1.5 27.5 55 110 90 0.54
R16-10 16 5/8 15.5 16.7 22.6 25.4 0.8 1.5 25.0 50 100 100 0.68
R16-12 19 3/4 18.6 19.8 26.3 29.0 0.8 1.5 21.5 43 86 120 0.80
R16-16 25 1 25.0 26.4 34.0 36.6 0.8 1.5 16.5 33 66 150 1.15
R16-20 31.5 1-1/4 31.4 33.0 41.9 44.3 1.0 2.0 12.5 25 50 210 1.83
