Jin Yibo Braid Hose

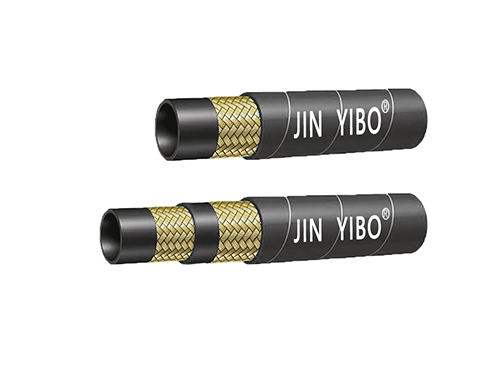

Jin Yibo Steel Wire Braid Hydraulic Rubber Hose

Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Product application：suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.
Pulse: 100°C grade tested with six hundred thousand impulse cycles without leakage
Temperature ranging: from-40° F to +212° F(-40°C to+ 100°C)
Standard: Meet ISO 18752-BC Standard

[email protected]

+8613140502916

Consult Online Leave a Message

Product Application

Application：Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit

Product Attributes

Product application：suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.
Pulse: 100°C grade tested with six hundred thousand impulse cycles without leakage
Temperature ranging: from-40° F to +212° F(-40°C to+ 100°C)
Standard: Meet ISO 18752-BC Standard

Product Parameters

TYPE	SIZE	I.D (mm.)		W.D (mm.)		O.D (mm.)		Max.W.P (MPA)	P.P (MPA)	Min.B.P (MPA)	MIN. IMPULSE (10K CYCLES)	Min.B.R (mm.)	W.T kg/m
TYPE	IN	MIN	MAX	MIN	MAX	MIN	MAX	Max.W.P (MPA)	P.P (MPA)	Min.B.P (MPA)	MIN. IMPULSE (10K CYCLES)	Min.B.R (mm.)	W.T kg/m
-4	1/4-1	5.8	6.5	10.6	11.6	12.5	13.5	25	50	100	30	80	0.23
-5	5/16-1	7.7	8.5	12.1	13.3	14.5	15.5	25	50	100	30	92	0.30
-6	3/8-1	9.8	10.5	14.5	15.7	16.5	17.5	21	42	84	30	104	0.34
-8	1/2-1	12.8	13.5	17.5	19.0	20.0	21.1	18	36	72	30	144	0.40
-10	5/8-1	15.8	16.6	20.6	22.2	23.5	24.5	14	28	56	30	160	0.50
-12	3/4-1	18.8	19.8	24.6	26.2	27.5	28.5	14	28	56	30	192	0.65
-16	1-1	24.8	25.8	32.5	34.1	34.5	35.5	9	18	36	30	240	1.00
-4	1/4-2	5.8	6.5	12.1	13.3	14.2	15.2	42	84	168	50	80	0.34
-5	5/16-2	7.7	8.5	13.7	14.9	15.8	16.8	42	84	168	50	92	0.43
-6	3/8-2	9.8	10.5	16.1	17.3	18.2	19.2	35	70	140	50	104	0.52
-8	1/2-2	12.8	13.5	19.0	20.6	21.3	22.3	28	56	112	50	144	0.63
-10	5/8-2	15.8	16.6	22.2	23.8	24.5	25.5	28	56	112	50	160	0.78
-12	3/4-2	18.8	19.8	26.2	27.8	28.7	29.7	25	50	100	50	192	0.92
-16	1-2	24.8	25.8	34.1	35.7	36.2	37.2	21	42	84	50	240	1.32
-20	1-1/4-2	31.4	33.0	43.3	45.7	46.7	48.3	14	28	56	50	400	1.80
-24	1-1/2-2	37.7	39.3	49.3	52.0	52.6	54.0	9.0	18	36	50	480	2.20
-32	2-2	50.4	52.0	62.3	64.7	66.0	67.6	8.0	16	32	50	610	3.00
