EN 857 1SC/EN 857 2SC

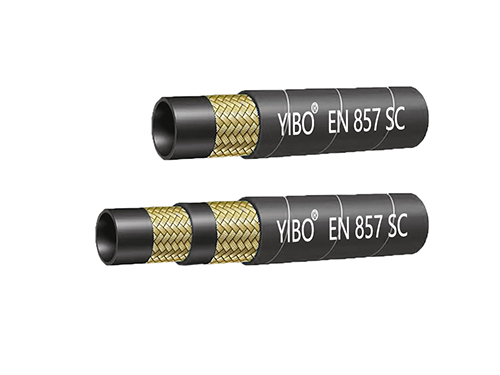

DIN EN 857 SC Wire Braid Reinforced Compact Hydraulic Hose

  • Tube:Oil Resistant Synthetic Rubber
  • Reinforcement:1 or 2 High Tensile Steel Wire Braids
  • Cover:Black Smooth Or Black Corrugate, Oil, Weather And Abrasion Resistant Synthetic rubber
  • Safety Factor：4:1

[email protected]

+8613140502916

Consult Online Leave a Message
Request A Quote

Product Application

Applied to construction machinery (excavators, bulldozers, loaders)Different application introduction content will be provided according to the classification.

Product Attributes

  • Tube:Oil resistant synthetic rubber
  • Reinforcement:1 or 2 High tensile steel wire braids
  • Cover:Black smooth or black corrugate, oil, weather and abrasion resistant synthetic rubber
  • Safety factor:4:1
  • Application:Transmit petroleum base hydraulic oil or water
  • Temperature Range:-40℃～+100℃（-40ºF～+212ºF）

Product Parameters

EN 857 1SC

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Max MPa MPa MPa mm kg/m
1SC-04 6.3 1/4 6.1 6.9 9.6 10.8 13.5 22.5 45 90 75 0.21
1SC-05 8 5/16 7.7 8.5 10.9 12.1 14.5 21.5 43 86 85 0.27
1SC-06 9.5 3/8 9.3 10.1 12.7 14.5 16.9 18 36 72 90 0.35
1SC-08 12.7 1/2 12.3 13.5 15.9 18.1 20.4 16 32 64 130 0.45
1SC-10 16 5/8 15.5 16.7 19.8 21 23 13 26 52 150 0.51
1SC-12 19 3/4 18.6 19.8 23.2 24.4 26.7 10.5 21 42 180 0.58
1SC-16 25.4 1 25 26.4 30.7 31.9 34.9 8.8 17.6 35.5 230 0.98

EN 857 2SC

TPYE SIZE SIZE I.D W.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
mm inch Min Max Min Max Max MPa MPa MPa mm kg/m
2SC-04 6.3 1/4 6.1 6.9 10.6 11.7 14.2 40.0 80 160 75 0.35
2SC-05 8.0 5/16 7.7 8.5 12.1 13.3 16.0 35.0 70 140 85 0.40
2SC-06 9.5 3/8 9.3 10.1 14.4 15.6 18.3 33.0 66 132 90 0.49
2SC-08 12.7 1/2 12.3 13.5 17.5 19.1 21.5 27.5 55 110 130 0.60
2SC-10 16.0 5/8 15.5 16.7 20.5 22.3 24.7 25.0 50 100 170 0.75
2SC-12 19.0 3/4 18.6 19.8 24.6 26.4 28.6 21.5 43 86 200 0.95
2SC-16 25.4 1 25.0 26.4 32.6 34.3 36.6 16.5 33 66 250 1.30
